Sub-Zero Refrigerator Error [Quick Fix]

This article details how to fix a Sub-Zero refrigerator error codes quickly and easily. So if you have been had troubles with fixing them, you have come to the right place.

Sub-Zero refrigerator error
Photo Credit: Blogspot.com

Sub-Zero Error Codes – Solutions

Here are the common error codes you will find in a Sub-Zero refrigerator and how to fix them:

1. EC06

When you see this error code, it means the thermistor reads open or shorted for more than 10 seconds. The error code can also mean that the thermistor of the evaporator in the refrigerator has read irregular temperatures on different occasions.

To fix it, you will need to employ the services of a qualified service agent. This is to help you verify the fault accurately and fix it properly.

2. EC20

The error code EC20 indicates that the bi-metal defrost thermostat is defective.

To fix this, turn off the refrigerator by unplugging it or shutting the circuit breaker off. After about 30 seconds, turn the refrigerator on again. The error code should disappear. But if it doesn’t, contact a qualified technician or a Sub-Zero service agent for help.

3. EC24

This error code means that the defrost heater is not heating enough to carry out its job.

To fix it, call a Sub-Zero repairman or any other qualified technician to verify the cause of the error and fix it.

If the internal temperature of the refrigerator is normal, then clean the condenser coils. This is to keep the compressor from operating more than needed because it is trying to keep the refrigerator from getting warm.

To clear the code, press the Door Ajar Alarm button and hold it for about 15 seconds.

4. EC40

When you see the EC40 error message, then you know that the compressor of the freezer is running non-stop. That means that the freezer is operating without a break.

Check the internal temperature of the freezer. If it is normal, then clean the condenser coils so that they can effectively release heat and the compressor won’t have to run non-stop. Then, clear the code by pressing the Door Ajar Alarm button and holding it for about 15 seconds.

But if the internal temperature is high, even with the compressor running constantly, have a qualified technician take a look at it to find out the cause of the high temperature.

5. EC50

This error code means that the compressor of the refrigerator is operating non-stop. So, the refrigerator is not getting any break.

If this is the case, then check to be sure that the door is not left open for long and that he door seal is sealing tightly. Also, ensure it is not opened often. Be sure that there isn’t too much food in the unit and that the food is not hot. Reduce the amount of food and let the hot one cool before storing it in the refrigerator.

Additionally, check the temperature of the room where the refrigerator is and the internal temperature of the unit. Keep the refrigerator in a cooler place and away from any direct heat source.

Clean the condenser coils thoroughly and check the blades of the condenser fan for obstruction. Be sure that they are spinning properly. These will help reduce the run time of the compressor.

However, if none of the above applies, contact a professional repairman or call Sub-Zero help center. This is because the problem could be a leak in the sealed system.

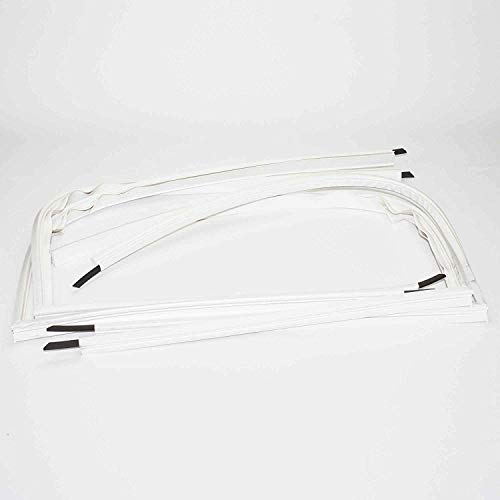

Sub-Zero Refrigerator Door Gasket 7010573

Buy this door seal on Amazon













Error Codes for Sub-Zero Refrigerator 427r-2 or 400-2 Series

1. 38 (Blinking or Not Blinking)

This error code indicates that either the thermistor of the evaporator is faulty or the compressor is running non-stop.

You will need to contact a refrigerator service agent to fix or replace the faulty part. Then, when this is done, turn the refrigerator off for a few minutes and turn it on again. Clear the code by pressing the on/off button and holding it for about 15 seconds.

2. EE (Blinking)

When you see this error code, you know that the thermistor of the refrigerator section is faulty. To fix it, have a qualified technician take a look at it, verify the fault and fix it for you.

Error Codes for Sub-Zero 600 and 700 Series Refrigerators

EC 21 and EC 24

These error codes signify that the defrost system is not functioning as it should. Fix this problem by checking the temperature in the refrigerator. If it is high, contact the Sub-Zero service center or having a repairman accurately diagnose the fault and fix it.

But if it is close to the normal temperature, then clean the condenser coils to keep them effective. After this, press the Door Ajar Alarm for about 15 seconds in order to clear the code from the display.

However, if the EC service light reappears or the refrigerator temperature rises, contact a service agent for repairs.

Error Codes for Sub-Zero Refrigerator 600 Series Alone

1. 00 Service (Blinking) EE

There is a problem with the thermistor of the refrigerator if you see this error code displayed.

2. 00 Service (Blinking) 38

The thermistor of the evaporator has a fault or the compressor is running excessively when you see this error code.

3. 00 ICE (Blinking) 38

The water valve energized longer than 15 seconds so the ice maker system was disabled. During the ice making cycle, there is a 45-minute period when no power goes to the ice maker. You can bypass this period by switching the ice maker off and back on.

4. 00 Ice (Blinking) 38

This error code means that the water valve energized longer than 15 seconds. So the ice maker system disabled for about 24 hours.

During the ice making cycle, there is a 45-minute period when no power goes to the ice maker. You can bypass this period by switching the ice maker off and back on.

5. EE Service (Blinking) 38

This error code indicates that the thermistor of the freezer compartment is defective.

Fix these faults by calling a repairman or any service agent from Sub-Zero.

Error Codes for Sub-Zero Refrigerator 600-2 Series

1. 00 Ice (Blinking) 38

This code means 5 times consecutively, the water valve energized for longer than 15 seconds. So, each time, the ice maker was disabled.

During the ice making cycle, there is a 45-minute period when no power goes to the ice maker. You can bypass this period by switching the ice maker off and back on.

2. 00 Service (Blinking) EE

The thermistor of the refrigerator section is defective if you see this error code displayed. Replace the thermistor.

3. EE Service (Blinking) 38

The thermistor of the freezer section is defective if you see this error code displayed. Replace the thermistor.

4. 00 Service (Not Blinking) 38

Clear the code by pressing the on/off button and holding it for about 15 seconds.

5. 00 Service (Blinking) 38

The evaporator has a fault or the compressor keeps running for too long without a break when you see this error code.

Error Codes for Sub-Zero Refrigerator 700 Series

1. -20

There is a problem with the thermistor of the refrigerator. Check the wiring to ensure the wires are connected. If they are, then consider replacing the thermistor.

2. 55

This error code means that the thermistor of the refrigerator shorted. Consider replacing the thermistor. But first, check the wiring to see if it is properly connected.

3. -88

The display cable’s red wire is disconnected if you see this code. Check the wires to be sure they are connected in the harness. Consider replacing the wire harness if it is faulty.

4. Su

The display cable’s blue wire is disconnected. Reconnect it and check the wire harness for faults.

Error Codes for Sub-Zero Refrigerator 700-2 Series

1. 00 Ice (Blinking) 38

The water valve to the ice maker seems to have energized for longer than 15 seconds. The ice maker disabled consequently.

During the ice making cycle, there is a 45-minute period when no power goes to the ice maker. You can bypass this period by switching the ice maker off and back on.

2. 00 Service (Blinking) EE

When you see this error code, you know that the thermistor of the refrigerator section is defective. Consider replacing the thermistor.

3. EE Service (Blinking) 38

This error code indicates that the thermistor of the freezer compartment is defective. Consider replacing the thermistor.

4. 00 Service (Blinking) 38

The code means that the evaporator is faulty or the compressor is running excessively without any break. Check the conder coils for dirt and dust so they can relieve the compressor. And have a qualified technician check the evaporator.

Check out these other related articles…

Error Codes for Sub-Zero Refrigerator 700-3 Series

1. 00 Service (Blinking) EE

The error code signifies that the thermistor of the refrigerator section is faulty. Consider replacing the thermistor.

2. 00 Ice (Blinking) 38

The water valve of the ice maker energized for longer than 15 seconds. That is why the error code appeared. The ice maker was disabled for up to 24 hours w=each time the valve worked longer than it should.

During the ice making cycle, there is a 45-minute period when no power goes to the ice maker. You can bypass this period by switching the ice maker off and back on.

3. EE Service (Blinking) 38

What the error code means is that the thermistor of the freezer section is faulty. Consider replacing the thermistor.

This video explains how to repair a faulty thermistor in a Sub-Zero refrigerator…

4. 00 Service (Not Blinking) 38

Clear the code from the display by pressing the on/off button and holding it for about 15 seconds.

5. 00 Service (Blinking) 38

This error code means that the compressor is operating more than it should. It could also mean that the thermistor of the evaporator is defective.

Reminder

The first thing to do before you begin any repair work on your refrigerator is to power it off. Do this by unplugging it from the wall socket. If you cannot reach the wall socket, turn of the circuit breaker that supplies power to the room where the refrigerator is kept.
